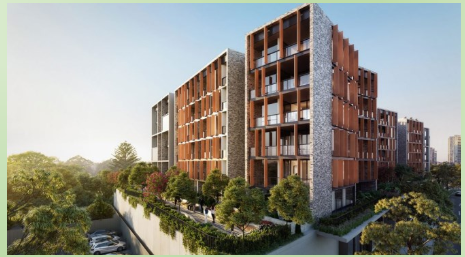

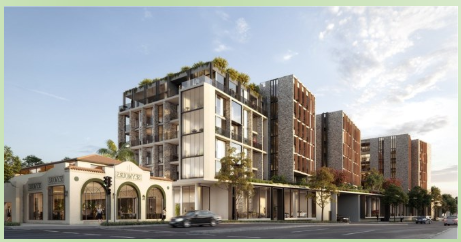

Design and modelling for the three blocks levels 2 to roof floors.

• Determination and specification of applicable load cases and load combinations, including imposed, dead, wind, seismic and construction loads where relevant.

• Calculation of load paths and run-down (tributary) load distributions to structural elements.

• Finite-element modelling and analysis using RAM Concept package and RAPT to verify member actions and slab behaviour.

• Development of design solutions for reinforced and post-tensioned concrete and steel members in accordance with applicable codes and project requirements.

• Independent spreadsheet-based calculation checks (Excel) validating software results and key design assumptions.

• Production of detailed mark-ups and annotations for drafting and documentation of design intent.

Designing efficient load-transfer systems in multi-storey post-tensioned concrete buildings where complex load paths, differential long-term deformations, and construction sequencing interact.

Why it matters

• Incorrectly accounted-for load paths or incompatible deformation behaviour can lead to excessive cracking, serviceability problems (uneven floors, ponding), redistribution of forces that overload secondary elements, and costly remedial works.

• Multi-storey and mixed-material structures amplify these risks because stiffness contrasts, differential creep and shrinkage, and variable connection detailing change how loads flow through the structure over time.

Primary factors to address

• Time-dependent behaviour: creep, shrinkage and relaxation in post-tensioned and reinforced concrete affecting long-term camber, stress in tendons and redistribution of moments.

• Construction sequencing and staged loading: temporary load cases, propping removal, progressive prestress installation and interaction with partially completed elements.

• Differential stiffness and movement: connections between concrete and steel, superstructure over transfer slabs, and transitions between piled and pad foundations.

• Serviceability limits: control of deflections, vibration, cracking and water ponding, often governing design more than ultimate capacity.

• Detailing and durability: anchorage zones, reinforcement congestion at transfer regions, corrosion protection and maintainability in congested nodes.

• Analysis modelling: need for robust 3D finite element models, staged construction analysis, and sensitivity checks to material parameter uncertainty.

• Load combinations and robustness: ensuring redundancy so local failures or construction errors do not lead to progressive collapse.

Mitigation strategies

• Early integrated design: coordinate architectural openings, mechanical services and façade loads to simplify load paths.

• Stage-aware modelling: perform staged construction analyses with realistic creep, shrinkage and tendon relaxation models; check multiple sequencing scenarios.

• Conservative serviceability checks: limit deflection and crack widths for long-term performance; design for worst-case losses in post-tensioned systems.

• Detailing for transfer: provide adequate reinforcement continuity, dowels and shear transfer mechanisms; avoid excessive congestion; use high-capacity anchors and bearing pads where needed.

• Interface design: include movement joints, bearing arrangements and slip-critical connections between different materials to accommodate differential movement.

• Quality control in construction: strict control of tendon stressing, concrete curing, tolerances and temporary works; monitoring during construction (deflection and strain) to validate assumptions.

• Redundancy and robustness: design alternative load paths, capacity in key members and ductile detailing in potential plastic zones.

Key checks and deliverables

• 3D structural model with staged construction sequences and time-dependent material properties.

• Detailed transfer-level design drawings and reinforcement schedules.

• Serviceability report covering long-term deflection, cracking and vibration criteria.

• Construction monitoring plan (deflection, tendon losses, strain gauges) and acceptance criteria.

• Risk register with sequencing and connection failure modes and mitigation measures.

Outcome objective Achieve a structurally efficient, durable and robust multi-storey post-tensioned building where load transfer and long-term deformations are controlled to meet safety, serviceability and constructability requirements while minimising cost and remedial risk.

Key engineering solutions

• Developed a hybrid structural system to balance span, floor-to-floor height and cost: post-tensioned flat slab for larger open-plan areas, reinforced concrete beams and columns for service cores and stairs, and structural steel framing for long-span/commercial zones.

• Optimised load paths and lateral resistance strategy using a combination of reinforced concrete shear cores and braced steel frames where required to meet drift and seismic considerations.

• Coordinated early with architect and services engineers to minimise clashes, reduce ceiling voids and avoid excessive slab depths.

2. Floor systems and slab design

• Post-tensioned flat slab design for podium and upper-storey office/retail areas to achieve long spans with reduced slab thickness and smaller drop heights, improving net lettable area and mechanical services integration.

• Conventional reinforced concrete slab and beam system for smaller spans and high-load areas (plant rooms, heavy equipment bases).

• Design included camber control, deflection criteria, and fatigue checks where dynamic or repetitive loading was expected.

Value outcomes

• Reduced overall structural depth and floor-to-floor heights in key areas, increasing usable floor area and lowering façade and service costs.

• Construction programme efficiencies through adoption of post-tensioned slabs and prefabricated steel where suitable.

• Robust durability and lifecycle performance achieving lower whole-of-life maintenance costs.

• Clear documentation and active site support minimised construction risk and change costs.
